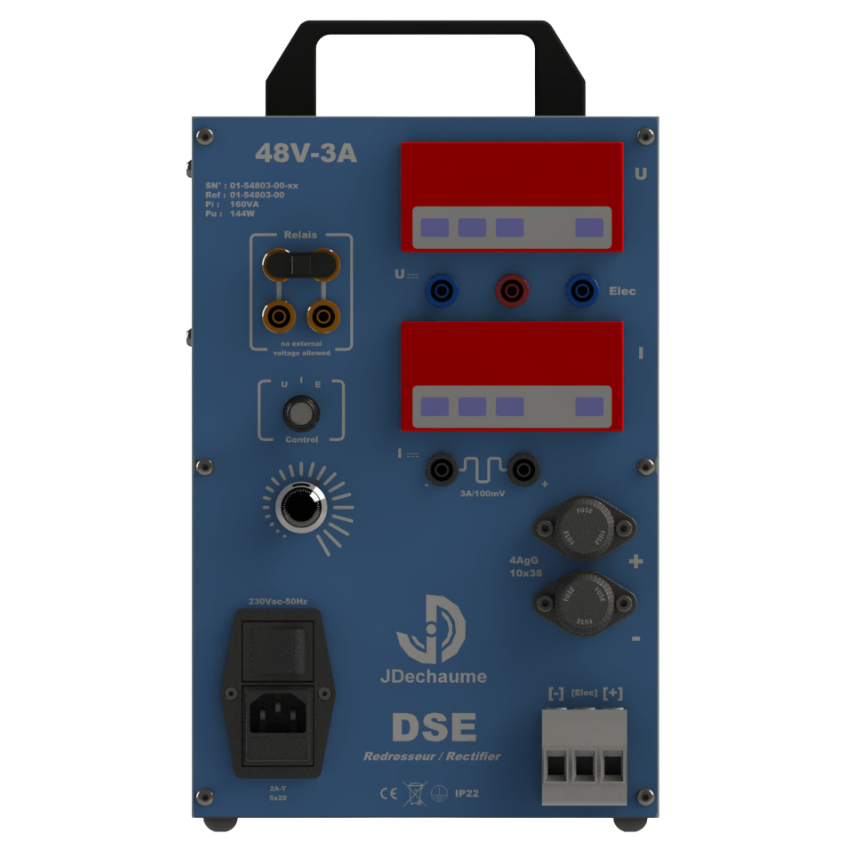

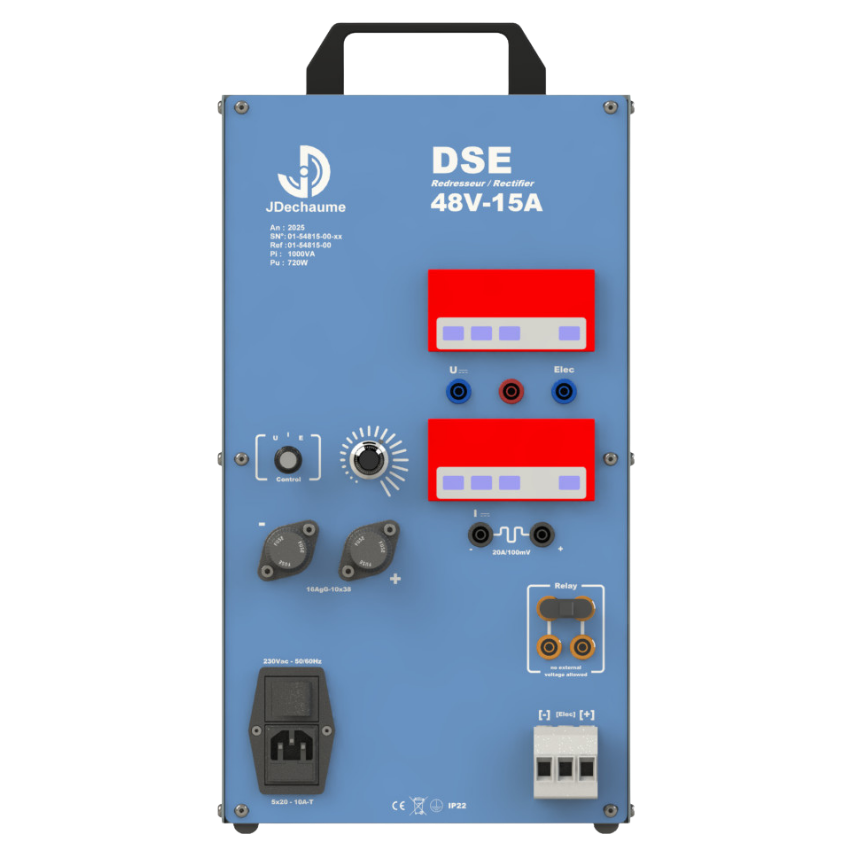

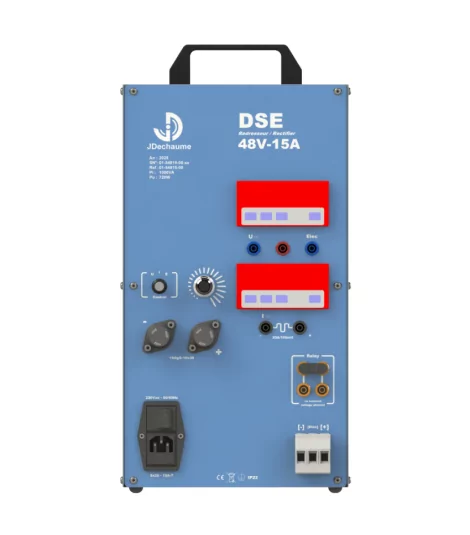

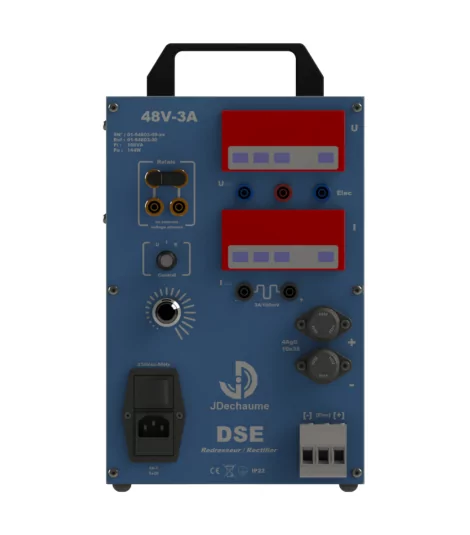

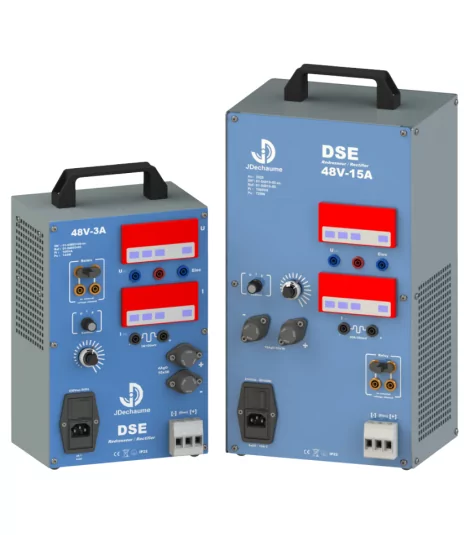

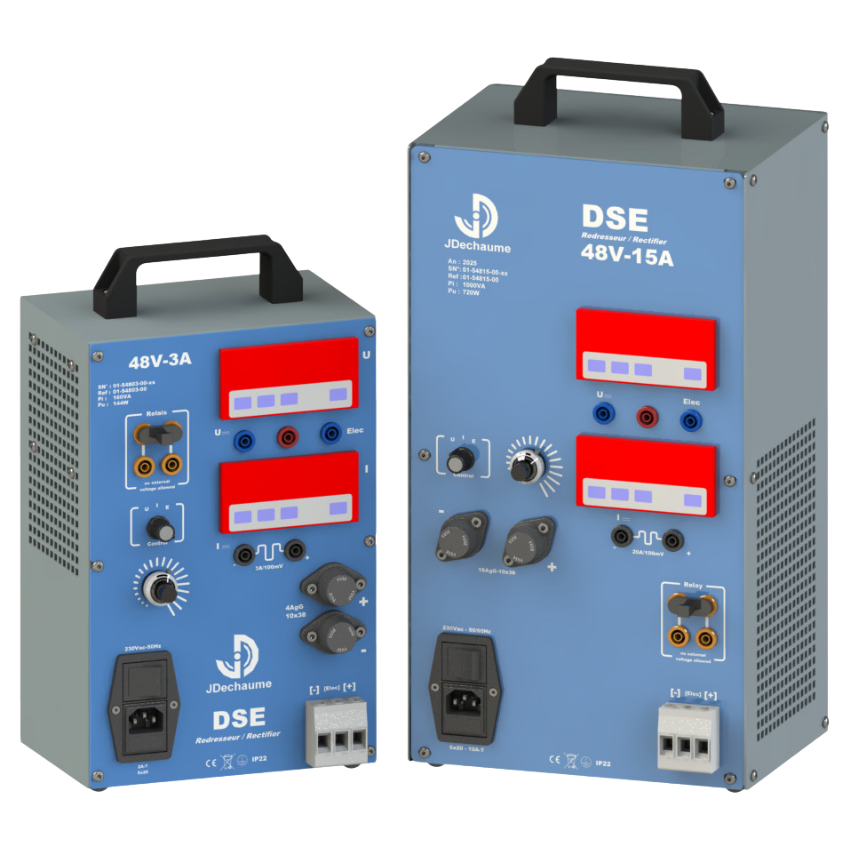

Transformer Rectifiers Electronic Rectifier self-regulated DSE
The electronic rectifier self-regulated DSE is an electronic current generator which is current or voltage self-regulated.
Description
Available regulation modes
-
U : Voltage Generator Mode
The output voltage is set via a front display potentiometer.
The current is adjusted to maintain a stable voltage.
-
I : Current Generator Mode
The output current is set using the front panel potentiometer.
The voltage is adjusted to maintain a stable current.
-
E : Rectifier controlled by an electrode potential
Current and output voltage adjust to keep the electrode set and the value measured at the nearest.
-
Power supply: 230Vac-50Hz
-
Output voltage: Continuous (Ripple factor <5%)
-
Voltage current display: Digital
-
Measurement sheet CEI61010 Ø4
-
Primary protection: Fuses
-
Secondary protection: Fuses
-
External cyclical switsh "on/off" location: electronics cut (no external voltage allowed on these terminals)
